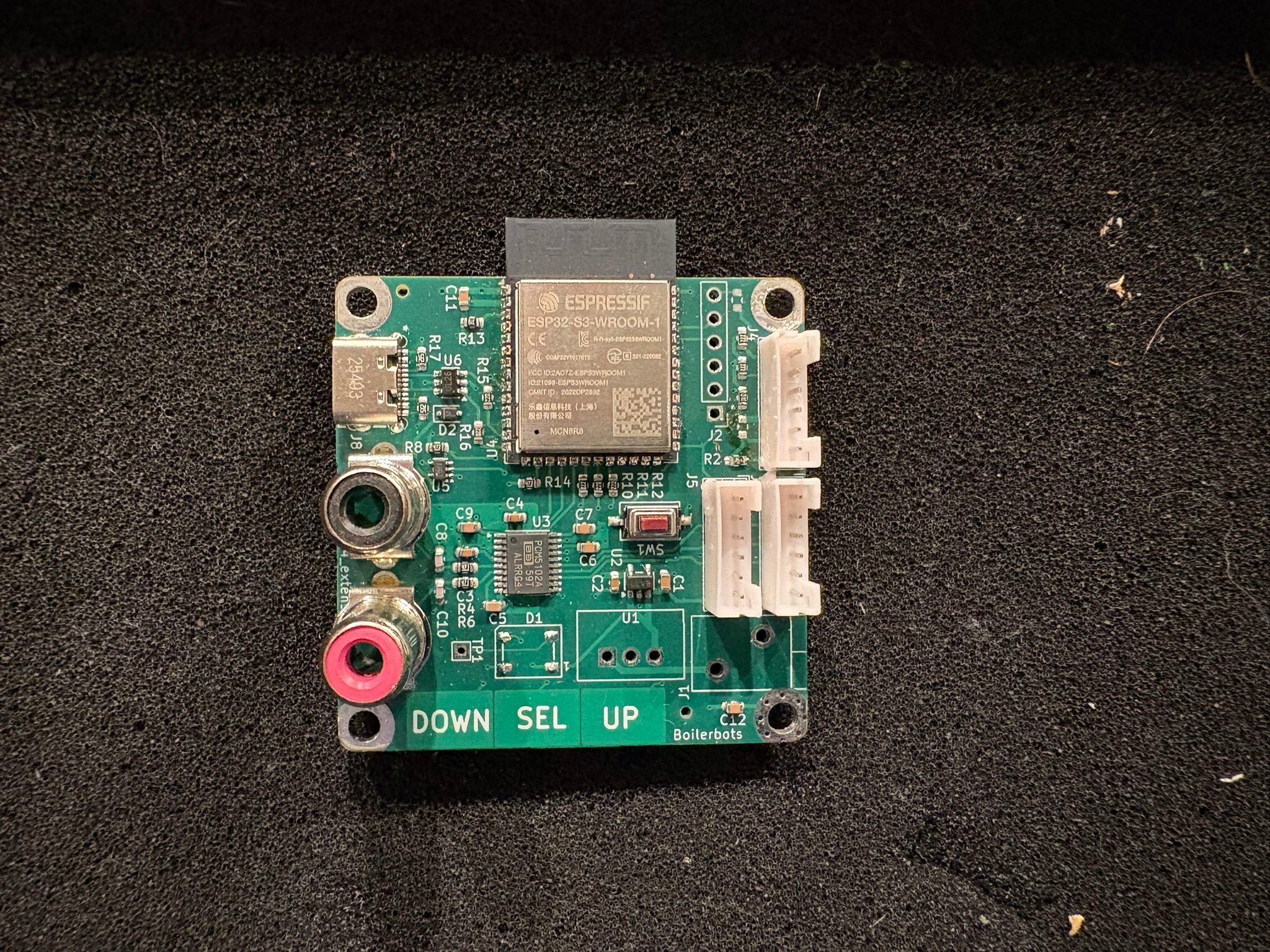

The SHP4 Extension is a small 50x50mm board that can be added to the SHP4 Amplifier to expand its functionality. The extended features include the following:
- Stereo line out, variable or fixed level.
- Bluetooth wireless remote control for volume and mute. (Sold Separately)
- Over the Internet firmware updates.
- Simple Tone control.
- 9 Band parametric EQ for record and Bluetooth.
- Cross-over frequency tuning.
- Two-way or Full Range outputs selection.
- Analog or Linear Taper.
- Test Tone generator (Bluetooth must be disabled)
All configurations are through an internal webpage. You must be able to connect the device to your wifi network and access the local webpage via a web browser. The wifi configuration is done through a mobile phone application that is available for Android and Apple devices. This is the only way to connect to your home wifi network because the configuration is passed to the device using bluetooth.
Once connected to your network the device should be accessible using the URL http://seeburg.local or using the IP address if you know how your home WiFi assigns IP addresses. More details can be found in the linked Google Document below.
